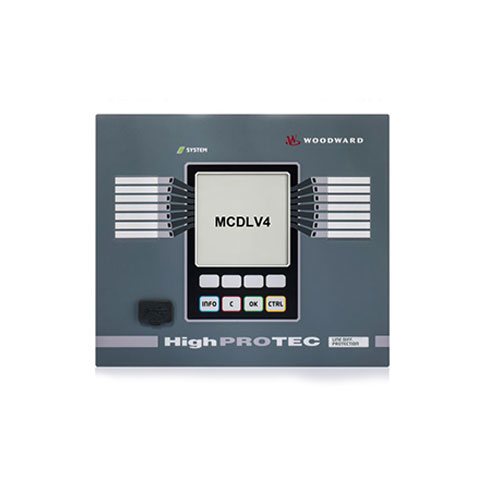

HighPROTEC MCDLV4 Line Differential Protection Relay | Advanced Cable & Line Protection System for Medium Voltage Networks
HighPROTEC MCDLV4 – Intelligent Line Differential Protection Relay for Reliable Cable & Power Distribution Protection
Electrical distribution networks require fast, selective, and highly reliable protection to prevent equipment damage, minimize outages, and maintain uninterrupted power supply. The HighPROTEC MCDLV4 Line Differential Protection Relay is an advanced digital protection device designed specifically for medium-voltage cable and line differential protection. Engineered by SEG Electronics (formerly Woodward Protection), the MCDLV4 combines multiple protection functions into one intelligent relay, reducing system complexity while improving network reliability.
At Barcol Power, we supply genuine HighPROTEC MCDLV4 Protection Relays with expert technical consultation, competitive pricing, and nationwide delivery across India. Whether you operate substations, industrial power systems, renewable energy plants, or utility distribution networks, the MCDLV4 provides fast fault detection, secure communication, and comprehensive protection for critical electrical infrastructure.
What is the HighPROTEC MCDLV4?
The MCDLV4 is a multifunction line differential protection relay developed to protect underground cables and overhead power lines in medium-voltage distribution systems. Unlike conventional protection relays that perform a single function, the MCDLV4 integrates six protection devices into one compact solution, significantly reducing installation costs, wiring complexity, and maintenance requirements.
The relay provides high-speed differential protection for cables and power lines while simultaneously offering feeder backup protection, transformer differential protection, and mains decoupling functions, making it an ideal choice for modern digital substations and industrial power distribution systems.
Why Choose HighPROTEC MCDLV4?
Power utilities and industrial facilities require protection systems capable of identifying faults within milliseconds while maintaining selectivity and preventing unnecessary outages. The MCDLV4 delivers exceptional performance by continuously monitoring electrical parameters and isolating faults with high precision.
Its modular architecture, flexible communication protocols, and intelligent protection algorithms make it one of the most advanced cable and line protection relays available for modern electrical networks.
Key Features of HighPROTEC MCDLV4
Advanced Line Differential Protection
Provides high-speed protection for underground cables and overhead lines up to approximately 40 km, ensuring rapid isolation of internal faults while maintaining service continuity for healthy network sections.
Six Protection Devices in One Relay
The MCDLV4 replaces multiple conventional protection devices by integrating:
- Two Cable & Line Differential Protection Devices
- Two Directional Feeder Backup Protection Devices
- One In-Zone Transformer Differential Protection Device
- One Mains Decoupling Device
This consolidation simplifies engineering, reduces panel space, and lowers overall project costs.
Directional Feeder Protection
Supports comprehensive feeder protection including:
- Phase Overcurrent Protection
- Earth Fault Protection
- Directional Earth Fault
- Wattmetric Ground Fault Protection
- Unbalanced Load Protection
- Voltage Supervision
- Frequency Protection
These functions ensure dependable fault clearance and enhanced network security.
Intelligent Fault Detection
The relay detects:
- Phase-to-Phase Faults
- Phase-to-Ground Faults
- High-Resistance Faults
- Internal Cable Faults
- Line Faults
- Earth Fault Conditions
- Unbalanced Load Conditions
- Voltage Abnormalities
This enables rapid fault localization and minimizes downtime.
High-Speed Protection
Advanced differential algorithms provide extremely fast and selective fault detection, helping protect expensive electrical assets while reducing outage durations.
Flexible Communication
The MCDLV4 supports modern industrial communication standards, including:
- IEC 61850
- Modbus RTU
- Modbus TCP
- IEC 60870-5-103
- IEC 60870-5-104
- DNP3
- Ethernet
- RS-485
This enables seamless integration with SCADA, substation automation systems, and energy management platforms.
Redundant Ethernet Communication
Dual Ethernet channels support redundant communication for enhanced reliability in mission-critical installations. Both electrical (RJ45) and optical fiber options are available.
Built-in Cybersecurity
Modern cybersecurity features include:
- Secure communication
- Device certificates
- Security logging
- Encrypted engineering connections
- Multiple password levels
- Interface hardening
These capabilities help protect substation automation systems against unauthorized access.
Advanced Logic Functions
The relay includes programmable logic equations for customized protection, automation, control, and monitoring strategies tailored to specific power system requirements.
Time Synchronization
Supports multiple synchronization methods including SNTP and IRIG-B for accurate fault recording and event analysis.
Benefits of HighPROTEC MCDLV4
Improve Network Reliability
Rapid fault detection minimizes outages and improves power system stability.
Reduce Equipment Damage
High-speed differential protection isolates faults before they can damage cables, transformers, or switchgear.
Lower Installation Costs
Replacing up to six separate protection devices with a single relay reduces panel size, wiring, and engineering effort.
Increase Operational Efficiency
Integrated protection and communication simplify maintenance and system management.
Support Digital Substations
Modern communication protocols allow easy integration with smart grid and automation systems.
Enhance System Safety
Advanced protection algorithms improve personnel and equipment safety by ensuring fast fault isolation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | HighPROTEC MCDLV4 |
| Product Type | Line Differential Protection Relay |
| Brand | SEG Electronics / HighPROTEC |
| Application | Cable & Line Differential Protection |
| Line Length | Up to 40 km (model dependent) |
| CT Inputs | 1 A / 5 A |
| Voltage Inputs | Up to 800 VAC (variant dependent) |
| Communication | IEC 61850, Modbus RTU/TCP, DNP3, IEC 60870-5-103/-104 |
| Ethernet | Dual Redundant Ethernet |
| Time Synchronization | SNTP, IRIG-B |
| Mounting | Panel Mount |
| Operating Temperature | -20°C to +70°C |
Technical capabilities vary by hardware version and ordering code.
Applications
The HighPROTEC MCDLV4 is suitable for a wide range of power system protection applications, including:
- Medium Voltage Distribution Networks
- Underground Cable Protection
- Overhead Line Protection
- Utility Substations
- Industrial Power Distribution
- Renewable Energy Plants
- Solar Power Plants
- Wind Farms
- Data Centers
- Airports
- Water Treatment Facilities
- Mining Operations
- Oil & Gas Plants
- Steel Plants
- Cement Industries
- Smart Grid Infrastructure
Industries We Serve
- Power Utilities
- Electrical EPC Contractors
- Renewable Energy Developers
- Manufacturing Industries
- Commercial Infrastructure
- Government Utilities
- Transmission & Distribution Companies
- Industrial Automation Integrators
- Process Industries
- Infrastructure Projects
Certifications & Compliance
The HighPROTEC MCDLV4 complies with internationally recognized standards and certifications, including:
- IEC 60255
- CE Certification
- KEMA Type Tested
- CSA Certification
- EAC Certification
- VDE-AR-N 4110
- VDE-AR-N 4120
- VDE FNN Compliance
These certifications demonstrate its suitability for demanding industrial and utility applications.
Why Buy HighPROTEC MCDLV4 from Barcol Power?
Barcol Power is a trusted supplier of industrial electrical protection solutions in India. We provide genuine HighPROTEC products with comprehensive technical support to help customers implement reliable and efficient protection systems.
When you choose Barcol Power, you receive:
- Genuine HighPROTEC Products
- Expert Application Engineering
- Competitive Pricing
- Fast Delivery Across India
- Technical Documentation Support
- Product Selection Assistance
- Reliable After-Sales Service
- Customized Protection Solutions
Why HighPROTEC MCDLV4 is the Ideal Choice
The HighPROTEC MCDLV4 combines advanced line differential protection, feeder backup protection, transformer protection, intelligent communication, cybersecurity, and flexible automation into one compact relay. Its ability to replace multiple traditional devices while providing superior protection makes it a preferred solution for modern substations and industrial power distribution systems.
Frequently Asked Questions (FAQs)
What is the HighPROTEC MCDLV4?
The MCDLV4 is a multifunction line differential protection relay designed to protect medium-voltage cables and power lines with high-speed fault detection and advanced automation features.
What applications is the MCDLV4 suitable for?
It is widely used in utility substations, industrial facilities, renewable energy projects, data centers, airports, mining operations, and other critical power distribution systems.
How many protection devices can the MCDLV4 replace?
The relay can replace up to six conventional protection devices by integrating line differential, feeder backup, transformer differential, and mains decoupling functions.
Does the MCDLV4 support IEC 61850?
Yes. The relay supports IEC 61850 along with Modbus, DNP3, and IEC 60870 communication protocols for seamless SCADA integration.
Is the MCDLV4 suitable for smart substations?
Yes. Its advanced communication, cybersecurity features, programmable logic, and redundant Ethernet make it ideal for modern digital substations.
Can it protect underground cables?
Yes. The MCDLV4 is specifically designed for high-speed differential protection of underground cables and overhead power lines.
