XD1-G Generator Differential Protection Relay | Advanced Generator & Motor Protection Relay for Reliable Power System Safety
XD1-G Generator Differential Protection Relay – High-Speed Protection for Generators and Motors
Reliable generator protection is essential for maintaining the safety, stability, and performance of power generation systems. Internal faults such as stator winding faults, phase-to-phase faults, and earth faults can cause severe equipment damage, unplanned downtime, and costly repairs if not detected immediately.

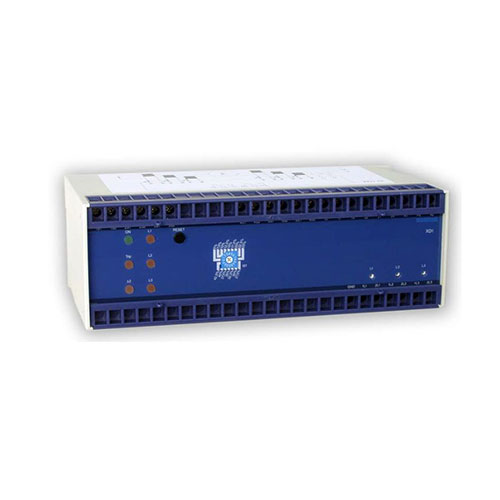

The XD1-G Generator Differential Protection Relay from SEG Electronics (Woodward Protection) is a high-performance digital differential protection relay designed to provide fast, selective, and dependable protection for synchronous generators, motors, and associated electrical equipment. Based on the proven Merz-Price circulating current principle, the relay continuously compares current entering and leaving the protected zone to detect internal faults with exceptional speed and accuracy while remaining stable during external disturbances.
At Barcol Power, we supply genuine XD1-G Generator Differential Protection Relays with expert technical support, competitive pricing, and nationwide delivery across India for industrial, utility, and commercial power applications.
What is the XD1-G Generator Differential Protection Relay?
The XD1-G is an intelligent protection relay specifically designed to safeguard generators and large motors against internal electrical faults. It continuously measures the current flowing at both ends of the protected equipment. Under normal operating conditions, these currents are equal. If a differential current appears, the relay instantly identifies it as an internal fault and issues a trip command to isolate the equipment before significant damage occurs.
The relay offers high-speed operation, excellent stability during external faults, and optional current transformer (CT) saturation detection, making it suitable for demanding industrial and utility environments.
Why Choose the XD1-G Generator Differential Protection Relay?
The XD1-G is engineered for mission-critical applications where rapid fault detection and dependable operation are essential. It combines advanced protection technology with a robust design, simple configuration, and flexible power supply to deliver long-term reliability.
Whether installed in a power plant, manufacturing facility, or renewable energy project, the XD1-G helps minimize equipment damage, reduce downtime, and improve overall power system reliability.
Key Features of XD1-G Generator Differential Protection Relay
High-Speed Differential Protection
Detects internal generator and motor faults within milliseconds, minimizing damage to stator windings and associated electrical equipment.
Based on the Merz-Price Differential Principle
The relay compares current measured at the generator neutral and terminal ends. Any imbalance indicates an internal fault requiring immediate isolation. This principle provides highly selective protection while remaining stable during external faults.
Protection Against Multiple Fault Types
Provides reliable protection against:
- Stator winding faults
- Phase-to-phase faults
- Phase-to-earth faults
- Ground faults
- Internal generator faults
- Internal motor faults
- Terminal connection faults
These protection functions help prevent catastrophic equipment failures and costly production losses.
Excellent External Fault Stability
The relay is designed to remain stable during faults outside the protected zone, preventing unnecessary tripping and maintaining system continuity.
Optional CT Saturation Detection (SAT)
The optional SAT module detects current transformer saturation during high fault currents, preventing false trips while maintaining dependable protection performance. It can also be added later if system conditions change.
Wide Auxiliary Power Supply
The integrated wide-range power supply supports:
- 19–390 V DC
- 35–275 V AC
This flexibility allows easy integration into a variety of industrial and utility installations.
Adjustable Protection Settings
Engineers can configure:
- Differential pickup current
- Trip delay
- Relay characteristics
- CT ratio settings
- Sensitivity levels
to match the specific generator or motor application.
Compact Industrial Design
The relay is built for continuous operation in demanding environments and is suitable for panel mounting in generator control panels, switchgear, and protection systems.
Benefits of XD1-G Generator Differential Protection Relay
Protect Expensive Equipment
Rapid fault isolation minimizes damage to generators, motors, transformers, and associated electrical systems.
Reduce Downtime
Fast tripping helps restore system availability more quickly after internal faults.
Improve Power System Reliability
High selectivity ensures only the affected equipment is disconnected, allowing the remainder of the electrical network to continue operating.
Prevent False Tripping
Advanced differential algorithms and optional CT saturation detection improve stability during external disturbances.
Lower Maintenance Costs
Early fault detection reduces repair costs and extends the service life of electrical equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | XD1-G Generator Differential Protection Relay |
| Brand | SEG Electronics (Woodward Protection) |
| Product Type | Generator Differential Protection Relay |
| Application | Generator & Motor Protection |
| Protection Principle | Differential Protection (Merz-Price) |
| Auxiliary Supply | 19–390 V DC / 35–275 V AC |
| Mounting | Panel Mount |
| CT Saturation Detection | Optional SAT Module |
| Adjustable Pickup | Yes |
| Trip Delay | Adjustable |
| Industrial Application | Yes |
Applications
The XD1-G is suitable for protecting:
Synchronous Generators
Protects utility, standby, and industrial generators against internal electrical faults.
Industrial Motors
Provides reliable differential protection for medium and large electric motors.
Power Plants
Ensures dependable protection of generator units in thermal, hydro, and gas power plants.
Renewable Energy Facilities
Protects generators used in hydroelectric and renewable power generation systems.
Manufacturing Plants
Safeguards critical power generation equipment used in industrial production facilities.
Oil & Gas
Protects generator systems operating in offshore platforms, refineries, and processing plants.
Data Centers
Ensures reliable protection for backup generator systems supporting mission-critical IT infrastructure.
Hospitals
Provides dependable protection for emergency power generators serving life-safety equipment.
Industries We Serve
- Power Generation
- Utilities
- Manufacturing
- Steel Plants
- Cement Plants
- Mining
- Marine
- Oil & Gas
- Chemical Plants
- Pharmaceutical Industries
- Data Centers
- Hospitals
- Airports
- Water Treatment Plants
- Renewable Energy Projects
Why Buy XD1-G Generator Differential Protection Relay from Barcol Power?
Barcol Power is a trusted supplier of industrial power protection and automation products across India.
When you choose Barcol Power, you receive:
- Genuine SEG Electronics / Woodward Protection products
- Expert application engineering support
- Competitive pricing
- Fast delivery across India
- Technical documentation assistance
- Product selection guidance
- Reliable after-sales support
- Customized power protection solutions
Our experienced engineers help customers select the right generator protection relay based on generator capacity, protection philosophy, and electrical system requirements.
Why the XD1-G is the Right Choice
The XD1-G Generator Differential Protection Relay delivers fast, selective, and dependable protection for generators and motors. Its proven differential protection technology, optional CT saturation detection, wide auxiliary power supply, and industrial-grade reliability make it an excellent choice for organizations seeking long-term protection of valuable electrical assets.
Frequently Asked Questions (FAQs)
What is the XD1-G Generator Differential Protection Relay?
The XD1-G is a digital protection relay designed to protect generators and large motors against internal electrical faults using the differential protection principle.
How does the XD1-G work?
It compares the current entering and leaving the protected equipment. Any significant difference indicates an internal fault, causing the relay to trip and isolate the equipment.
Which faults can the XD1-G detect?
It detects stator winding faults, phase-to-phase faults, earth faults, ground faults, and other internal generator and motor faults.
Does the XD1-G prevent false trips?
Yes. It is designed to remain stable during external faults, and the optional CT saturation detection module further improves stability under severe fault conditions.
What auxiliary power supply does the relay support?
The XD1-G accepts a wide auxiliary supply range of 19–390 V DC or 35–275 V AC, making it suitable for many industrial installations.
Is the XD1-G suitable for motor protection?
Yes. The relay is designed for both generator and large motor differential protection applications.
